Heavy-Load Stackable Plastic Pallet for Warehouses

Brand Name: LINHUI-Plastics
Model Number: Size is selective as customer′s requirement
Materials: HDPE or PP
Style: Stacked Plastic Pallets
Entry Type: 4-Way
Color blue,green,red,black or customized
Place of Origin: China
Customize colors and Printing of Company's Name, Logo, Identification are available


  • Product Description
  • Specifications & Size
  • Product Applications
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

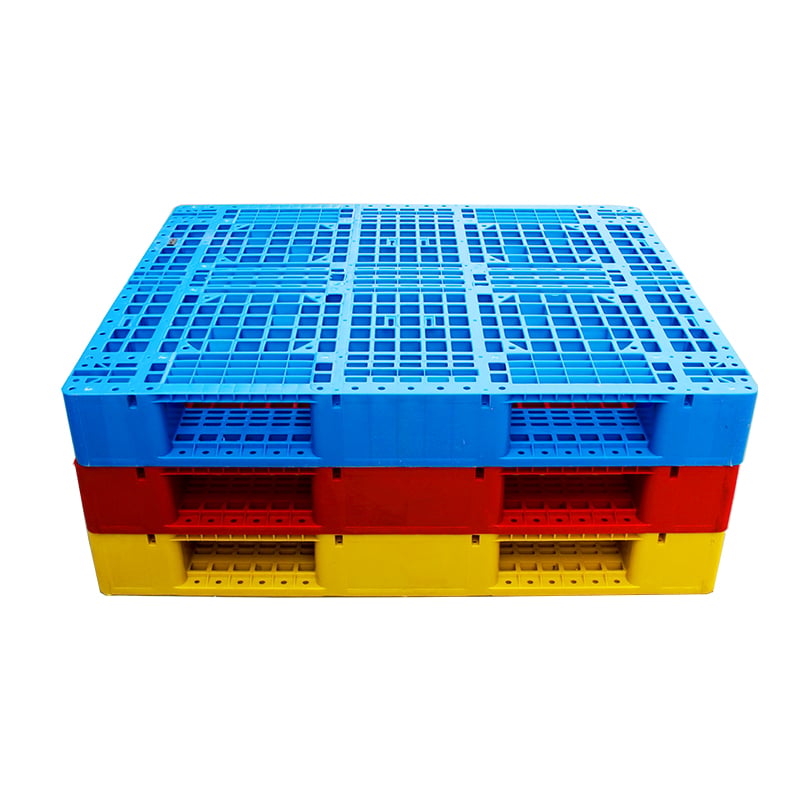

Heavy-Load Stackable Plastic Pallet for Warehouses
Stackable plastic pallet for warehouse floor stacking and bagged goods, moulded to carry a full column of static load without bowing. Four-way forklift entry.
Floor stacks grow quietly over a season, so the model is chosen for the heaviest layer in the column, not the average one. The square footprint keeps columns aligned when rows are built against walls. Bagged goods sit on the deck without slipping into grid openings.
Key features
• Deck and legs moulded to carry a full stacked column without bowing
• Square stack so a full column does not drift sideways

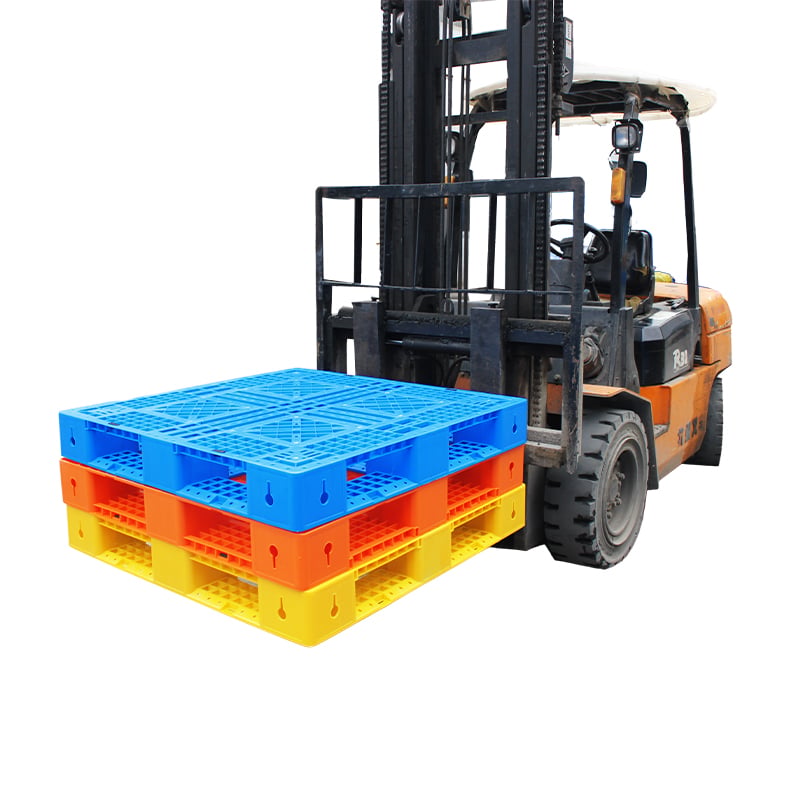

• Four-way entry, so a pallet truck still fits under a fully loaded stack
• HDPE body that takes rain and wash-down without swelling
Typical applications

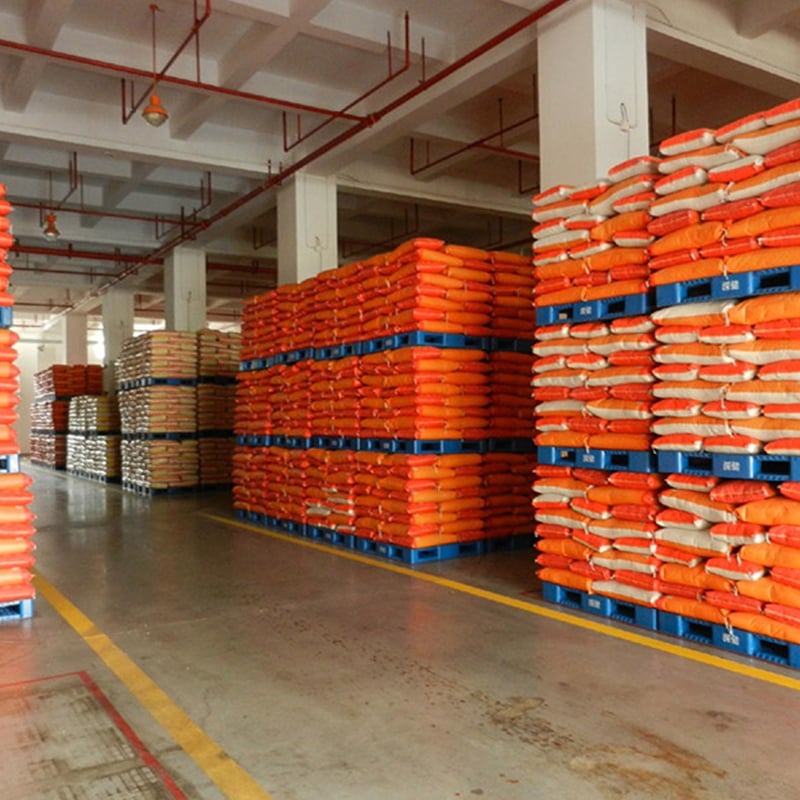

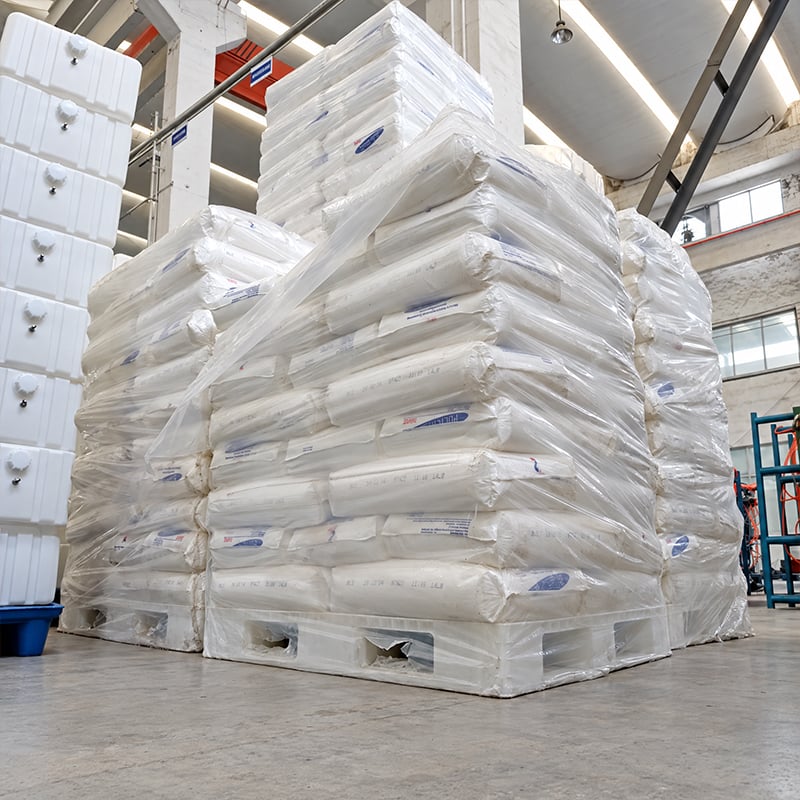

• Floor stacking of bagged grain, feed and fertiliser, stacked higher without bowing
• Bagged chemical powders and mineral filler held stable in tall floor stacks
• Building materials, sand bags and packed cement moved from yard to site on one pallet type
• Seasonal overflow and peak stock in grocery distribution, stacked in aisles when racks fill up
• Drum and IBC floor storage in chemical stores, on a deck that rinses after spills
• Sugar, salt and starch in 25 kg bags, stacked square without tearing sack corners
Options
• Standard deck types for floor stacking
• Colour marking to keep heavy-load pallets apart from lighter stock
• RFID chip or tag fitted for smart warehouse tracking
Purchase inquiry
Give us the stacked height and the weight per layer so we can check the column load against the model. Send the model number, quantity and destination port for a quotation.

Stacked Plastic Pallets
ExteriorDimensions(mm) ExteriorDimensions(in) Material Dynamic load(T) Static load(T) Shelves carrying(T) Add steel tube(PCS)
1100*1100*150(Model D) 43.31×43.31*5.9 HDPE or PP 3 1 _ _
1100*1100*150(Model C) 43.31×43.31*5.9 HDPE or PP 3 1 _ _
1100*1100*150(Model B) 43.31×43.31*5.9 HDPE or PP 3 1 1 8
1100*1100*150(Model A) 43.31×43.31*5.9 HDPE or PP 4 1.5 1 7
1200*800*135 47.24*34.45*5.31 HDPE or PP 4 1.5 _ _
1200*1000*150(Light) 47.24*39.37*5.9 HDPE or PP 3 1 _ _
1200*1000*150 47.24*39.37*5.9 HDPE or PP 4 1 1 7
1200*1000*160 47.24*39.37*6.3 HDPE or PP 4 1 1 _
1200*1200*150 39.37*39.37*5.9 HDPE or PP 4 1.5 1 7
1300*1100*150 51.18*43.31*5.9 HDPE or PP 4 1 1 _
customized customized customized — _ _ _


  • image8

    Warehouse storage

  • image7

    Liquid leak proof

  • image6

    Intelligent warehousing

  • image2

    food processing

  • image3

    Drinking water storage

  • image4

    Cold storage cold chain

  • image5

    Assembly line

  • image1

    Shelf storage

We are professional pallets manufatory, this is our hottest pallets! Please feel free to send us your

inquiries and we will be happy to answer any questions you may have.
