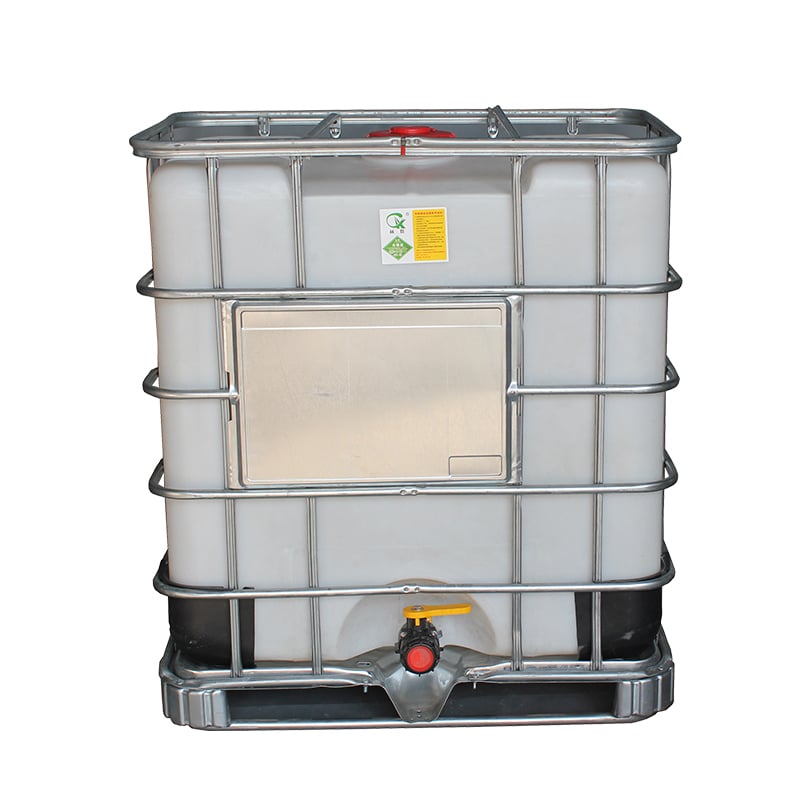

Plastic IBC Tote Tank with Steel Frame | HDPE & LLDPE

Brand Name: LINHUI-Plastics
Materials: HDPE and LLDPE
Style: Plastic IBC tote tank with steel frame
Available Capacity 500L and 1000L
Entry Type: Containers
Color white,blue,green,red,black or customized
Place of Origin: China
Customize colors ,thickness and Printing of Company's Name, Logo, Identification are available

  • Product Description
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Product Overview

Linhui’s plastic IBC tote tank is designed for bulk liquid storage, handling and transportation. The inner tank is available in HDPE and LLDPE, while the integrated steel frame and steel pallet base provide support during routine handling, storage and delivery. This reusable IBC tank is suitable for factories, warehouses, farms, water projects and industrial liquid handling applications.
The tank can be supplied with different filling openings, a breathing cap and a bottom discharge valve according to the customer’s liquid, filling method and unloading requirements. Customized colors, wall thickness, company logos, product codes and identification plates are also available for OEM and wholesale orders.

Material Options: HDPE and LLDPE

Linhui supplies two plastic material options for the inner tank: HDPE and LLDPE. The suitable material should be selected according to the stored liquid, concentration, operating temperature, storage duration and handling conditions.
HDPE is a practical option for general-purpose industrial liquid storage where rigidity, durability and broad chemical resistance are important considerations. LLDPE is commonly used for rotationally molded tank bodies and is suitable for applications where a one-piece tank body, flexibility and impact tolerance are required. Final chemical compatibility should be confirmed for the exact liquid and operating conditions before use.
Material
Product positioning
HDPE
A relatively rigid plastic option for general-purpose liquid storage and industrial handling applications.
LLDPE
A rotationally molded plastic option offering a one-piece tank body with flexibility and impact tolerance.

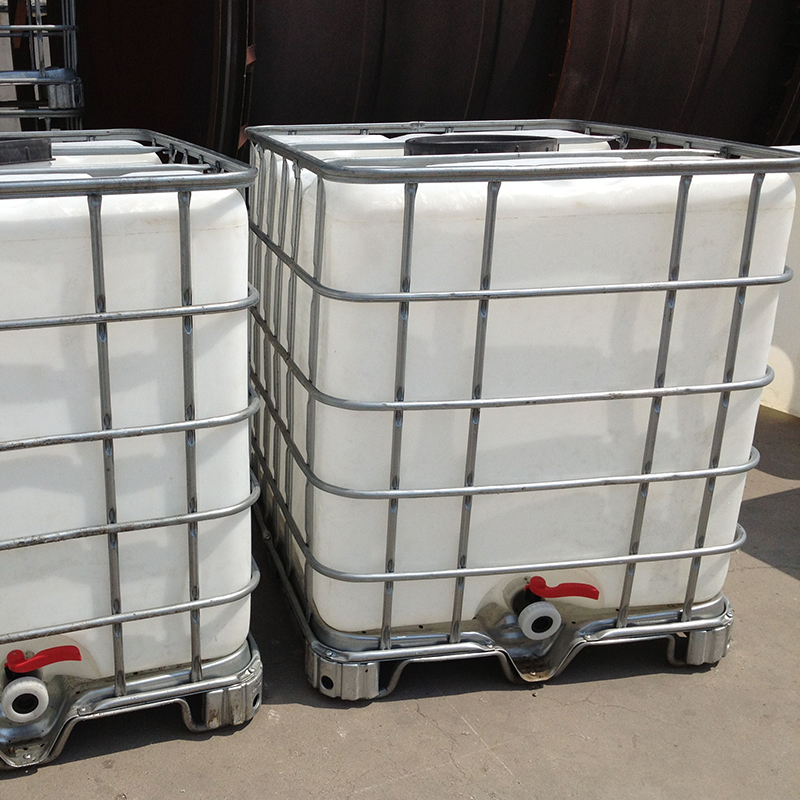

Available Capacities and Dimensions

The product range includes 500L and 1000L IBC tote tank options. Capacity and size should be displayed in the details area rather than in the main product title, allowing the page to remain suitable for both models.
Specification
500L option
1000L option
Nominal capacity
500L
1000L
Overall dimensions
Approx. 1020 × 850 × 1140 mm
Approx. 1200 × 1000 × 1150 mm
Inner tank dimensions
Approx. 950 × 600 × 950 mm
Approx. 1150 × 950 × 1000 mm
Inner tank material
HDPE or LLDPE, subject to order
HDPE or LLDPE, subject to order
Top opening
Small or large opening option
Large opening and small opening options available, subject to configuration
Cover
Small cap, large cap or breathing cap
Small cap, large cap or breathing cap
Bottom outlet
To be confirmed according to model
PVC ball valve listed; final fitting to be confirmed
The above dimensions and fittings should be checked against the final technical drawing before publication.

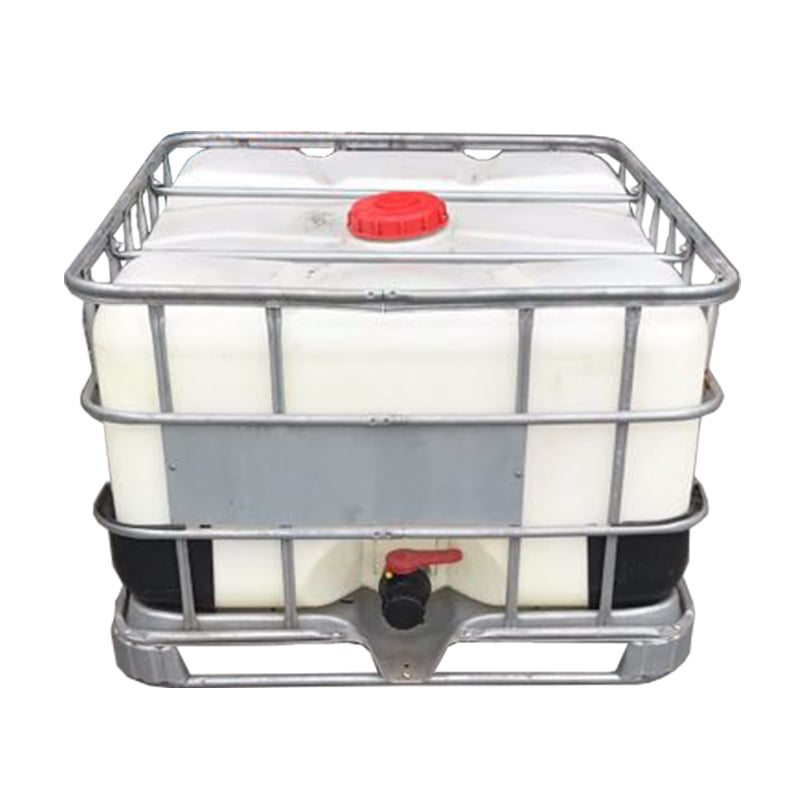

Steel Frame and Pallet Base

The plastic inner tank is enclosed by a protective steel frame. The frame helps stabilize the tank during handling and provides additional protection during storage and transportation. The all-steel pallet base is designed to support forklift handling and containerized loading.
The final loading method, filled-tank weight, stacking height and transportation suitability depend on the selected material, liquid density, tank configuration and local regulations. Please request the approved technical specification before stacking filled tanks or using the product for regulated transport.

Filling and Discharge Design

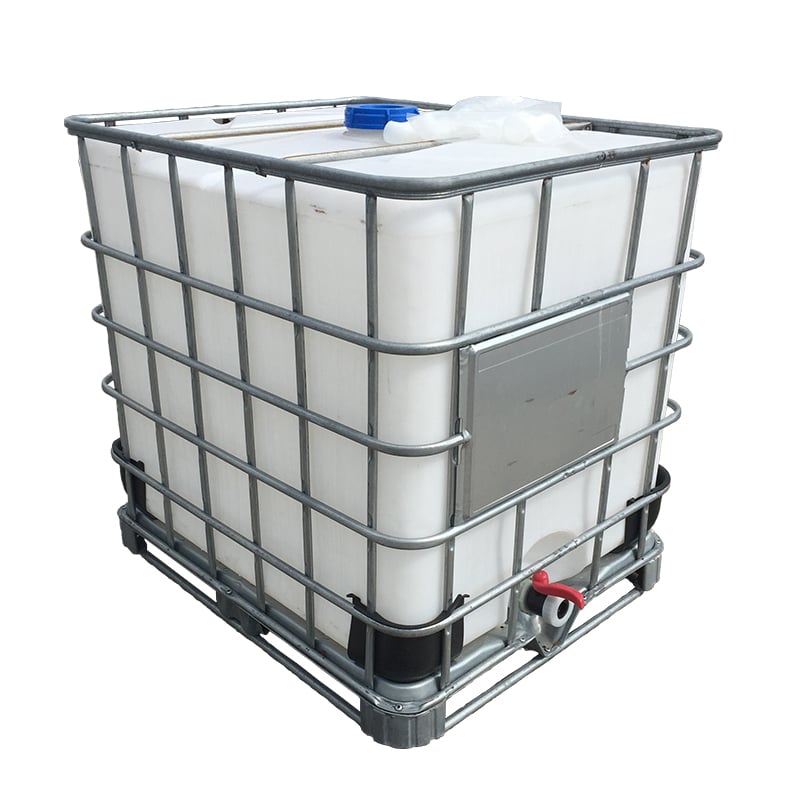

The IBC tote tank can be configured with a top filling opening and a bottom discharge outlet. The catalogue lists a large opening of approximately 330 mm and a small opening of approximately 150 mm, together with small cap, large cap and breathing cap options. The bottom outlet can be supplied with a PVC ball valve or another agreed fitting according to the final model.
Please confirm the filling opening, cap, valve, outlet size and connection type before placing an order.

Liquid Level Identification

A capacity scale can be provided on the inner tank to help users check the approximate liquid level during storage and handling. The scale is intended as a visual reference and should not replace certified weighing or metering equipment where precise measurement is required.

Applications

This plastic IBC tank can be considered for bulk water storage, industrial liquid handling, agricultural liquids, cleaning liquids, process liquids and project-site storage after the material and configuration have been confirmed. The HDPE or LLDPE option should be selected according to the exact liquid and service conditions.
For chemical applications, please provide the liquid name, concentration, operating temperature and expected storage duration before purchase. For dangerous-goods transportation, the buyer must confirm the required certification, test report and marking for the exact model.

Customization Options

For OEM and wholesale orders, Linhui can discuss customized color, wall thickness, company logo, product code, identification plate, tank opening, discharge valve and packaging or loading arrangements. Customization is subject to production feasibility, order quantity and final technical confirmation.

What Information Should You Send for a Quote?

To recommend a suitable IBC tote tank, please send the required capacity, liquid name, chemical concentration if applicable, operating temperature, specific gravity if known, storage or transportation purpose, filling opening, discharge valve, color, logo requirement, destination country and estimated order quantity.
Send us your requirements to receive a recommended HDPE or LLDPE IBC tank configuration and quotation.

四、FAQ 建议

如果当前网站结构支持增加 FAQ,建议放在 Product Description 末尾;如果不支持,可以将以下内容融入正文。

Are the IBC tanks made from HDPE or LLDPE?

The inner tank is available in HDPE and LLDPE. The suitable option depends on the liquid, temperature, storage duration and handling conditions.

What capacities are available?

The current product range includes 500L and 1000L options. Capacity, dimensions, fittings and material should be confirmed for the selected model before ordering.

Can the IBC tank be used for chemical liquids?

It can be considered for selected chemical solutions after compatibility has been confirmed. Please provide the exact liquid name, concentration and operating temperature before purchase.

Does the tank have a steel frame?

Yes. The plastic inner tank is protected by an integrated steel frame and an all-steel pallet base for routine handling, storage and transportation.

Can the color and logo be customized?

Yes. Customized color, wall thickness, company logo, product code and identification plate can be discussed for OEM and wholesale orders.

Is the IBC tank suitable for dangerous-goods transportation?

Certification should not be assumed for every configuration. If the product will be used for regulated dangerous-goods transportation, please request the certification and marking for the exact model before purchase.
